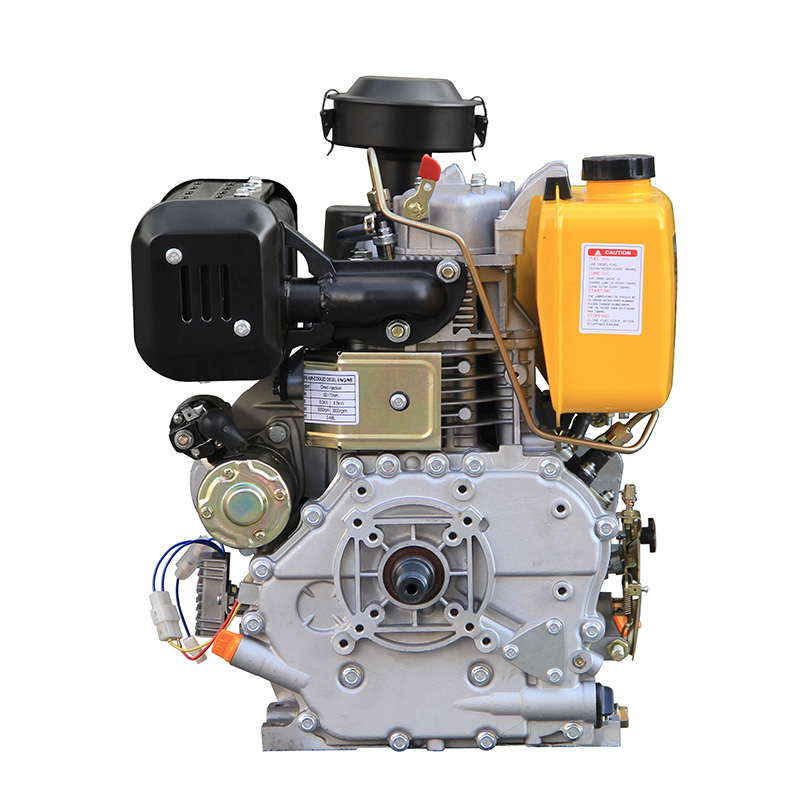

Model | 192FA | |
Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
Combustion System | Direct Injection | |
Bore×Stroke(mm) | 92x75 | |
Displacement capacity(cc) | 498 | |
Speed(rpm) | 3000 | 3600 |
Max.output(kw) | 8.5 | 9.0 |
Rated output(kw) | 8.0 | 8.5 |
Fuel | o# or-10# light diesel oil | |
Fuel oil tank volume(l) | 5.5 | |
Lubricatiom oil volume(l) | 1.65 | |
Fuel oil consumption rate(g/kw.h) | 280 | |
Starting system | Recoil or Electric | |
PTO rotation direction | It is clockwise as viewing from the flywheel end | |
Dimension(mm) | 515x455x545 | |
Net weight(kg) | 58 |
